ATV20 Slip-On Unit

$2,000.00

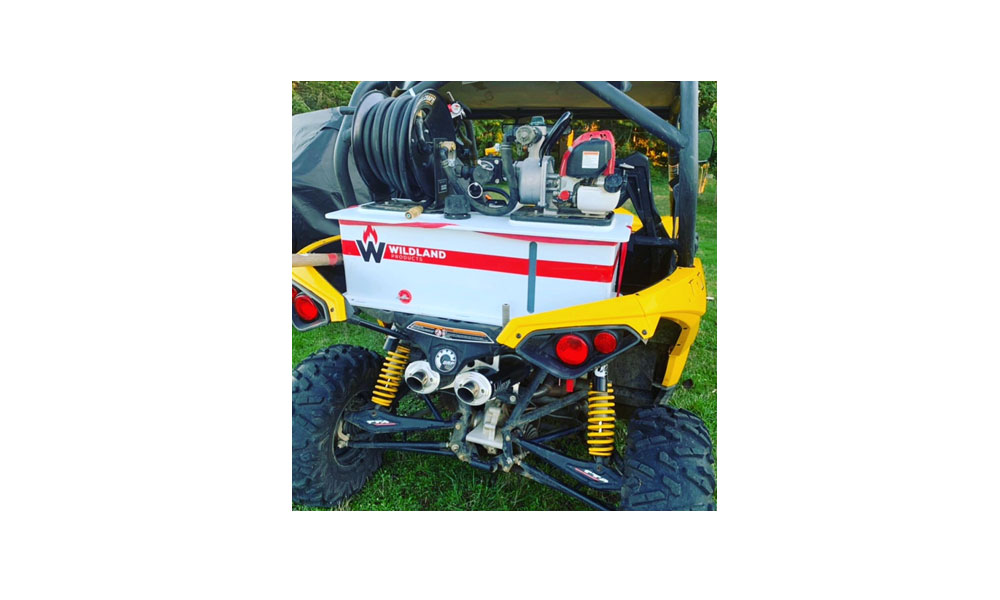

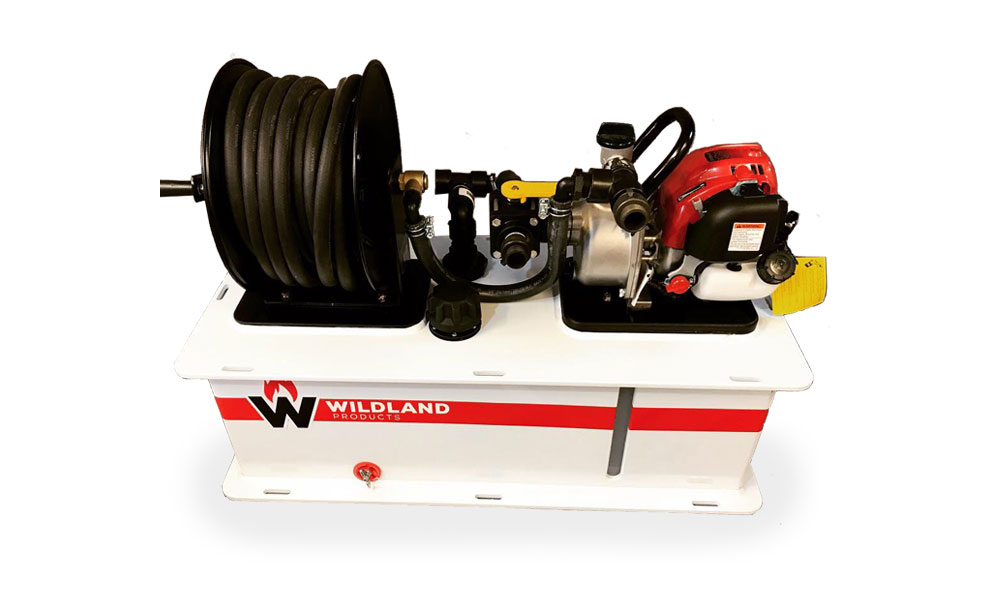

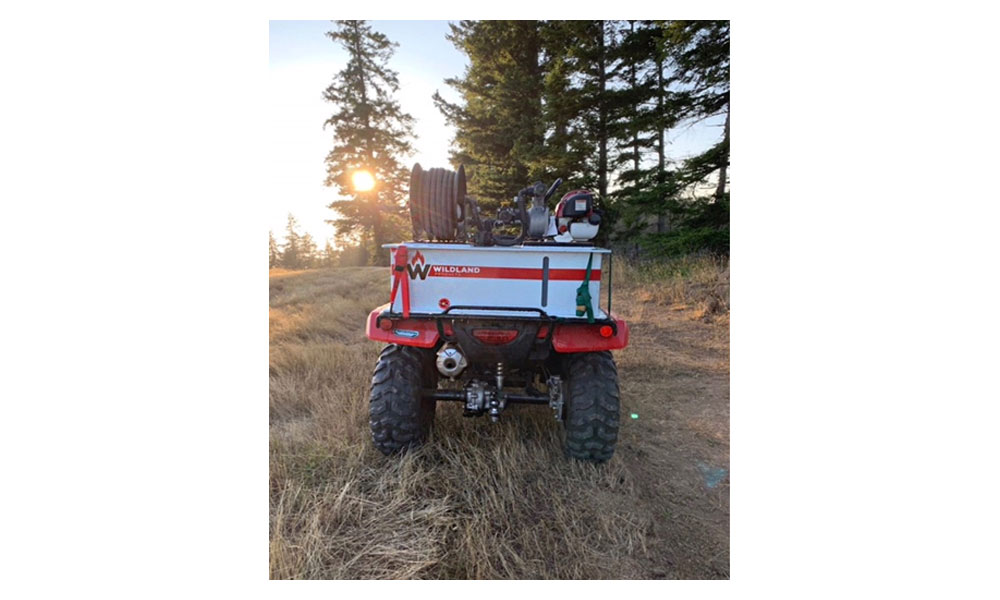

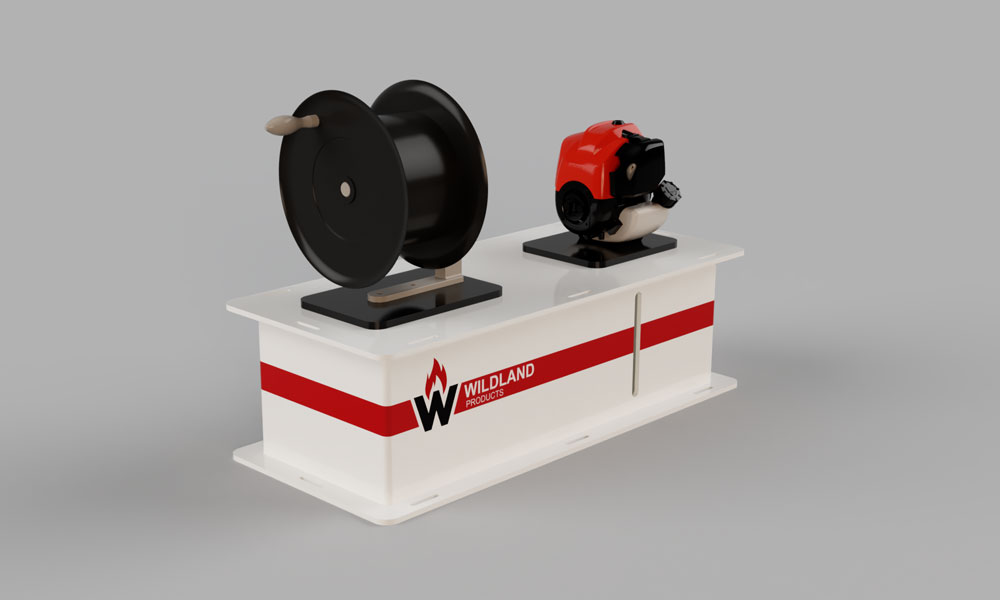

This versatile, low-weight slip-on module is designed to fit most utility ATVs and some sport UTVs. Features a baffled 20-gallon polypropylene tank, Honda powered centrifugal pump, drafting capabilities, and standard hose reel with 50 foot ½-inch hose.

For shipping/delivery and payment options, contact us.

Please contact us before placing your order.

Choose Your Options

Specifications

Tank

  • Make/Model: Wildland Products 100% polypropylene construction, internally baffled; Integrated sight glass for water level, with machined tie-down slots around the edges
  • Capacity: 20 U.S. gallons
  • Fill Port: Integral breather, strainer, fill cap; Additional 1” NPSH fill
  • Drain Port: 1.5” expansion plug

Pump

  • Make/Model: Koshin SEH-25L, self-priming single stage centrifugal pump
  • Suction: 1” MNPT
  • Discharge: 1” MNPT
  • Max Discharge: 30 GPM
  • Max Pressure: 46 PSI

Engine

  • Make/Model: Honda GX25 4 stroke, gasoline engine
  • Starting System: Pull start, recoil
  • Max Power: 1HP @ 7000 RPM

Hose Reel

  • Make/Model: Reel Craft Series C, ½” plumbing
  • Hose Capacity: 50 feet heavy duty semi-rigid hose
  • Rewind: Manual
  • Drum Brake: Spring loaded, drag type

Other Features

  • Drafting capabilities, polypropylene fittings
