UTV80 Slip-On Unit

$3,000.00

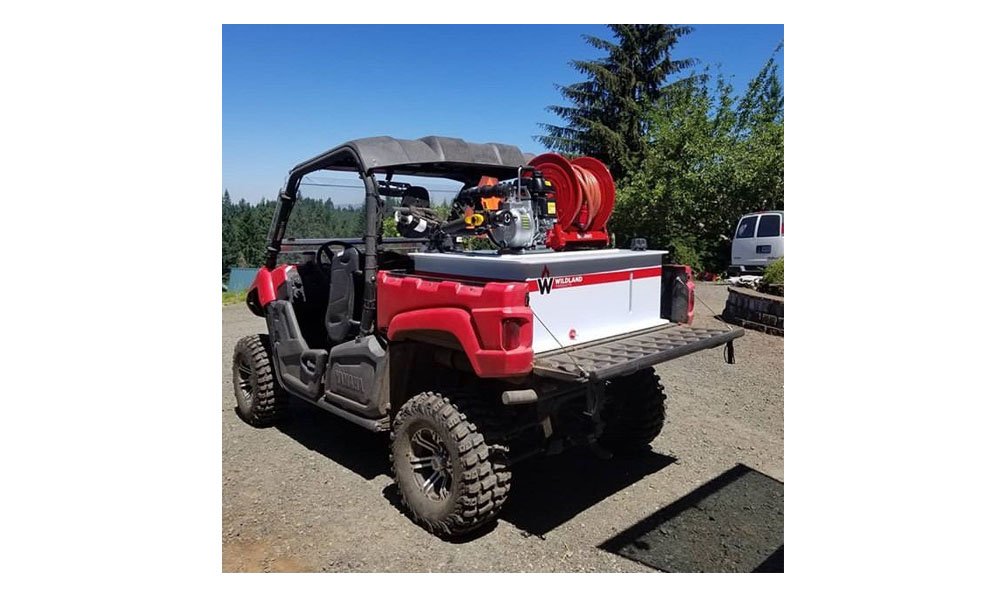

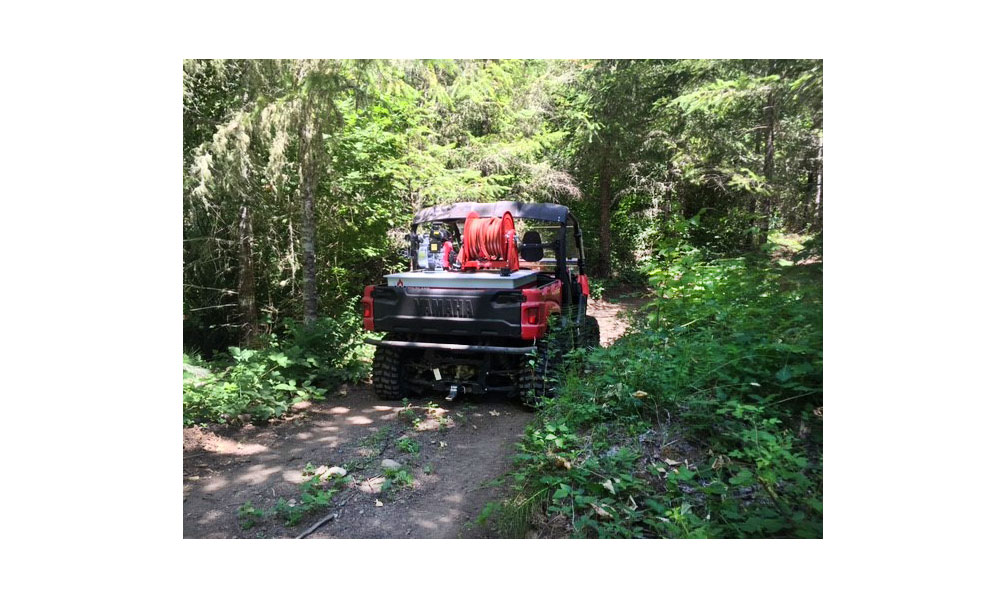

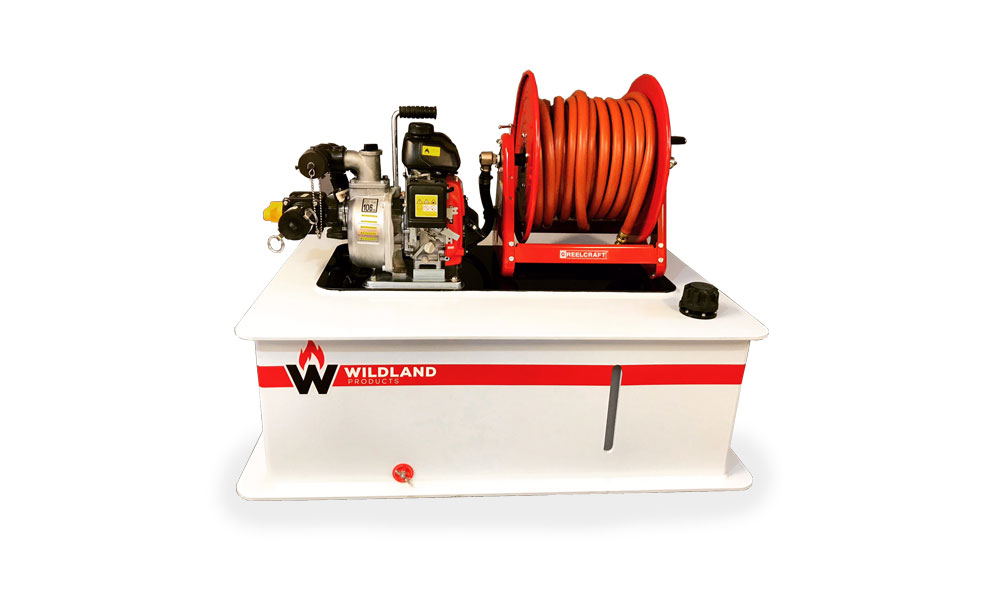

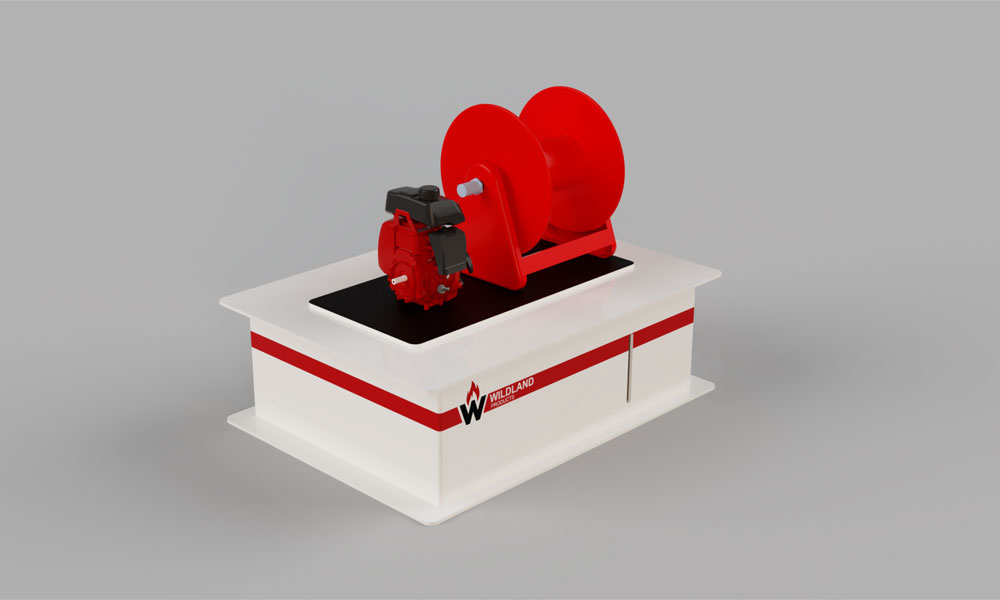

This versatile, low weight slip-on module has been designed to fit most utility UTVs. Features a baffled 85-gallon polypropylene tank, Honda powered centrifugal pump, drafting capabilities, and standard heavy duty hose reel, with 100 foot ¾” hose.

Additional options include: Class A Foam System, Roller Fairlead for Hose Reel.

For shipping/delivery and payment options, contact us.

Please contact us before placing your order.

Choose Your Options

Specifications

Tank

  • Make/Model: Wildland Products 100% polypropylene construction, internally baffled; Integrated sight glass for water level, with machined tie-down slots around the edges
  • Capacity: 85 U.S. gallons
  • Fill Port: Integral breather, strainer, fill cap; Additional 1” NPSH fill
  • Drain Port: 1.5” expansion plug

Pump

  • Make/Model: Koshin SEH-40, self-priming single stage centrifugal pump
  • Suction: 1.5” MNPT
  • Discharge: 1.5” MNPT
  • Max Discharge: 73 GPM
  • Max Pressure: 61 PSI

Engine

  • Make/Model: Honda GX50H 4 stroke, gasoline engine
  • Starting System: Pull start, recoil
  • Max Power: 1HP @ 7000 RPM

Hose Reel

  • Make/Model: Reel Craft series 30000, heavy duty
  • Hose Capacity: 100 feet heavy duty semi rigid hose, ¾ GHT
  • Rewind: Manual
  • Drum Brake: manual, drag

Other Features

  • Drafting capabilities, polypropylene fittings
