Integrated Slip-On Module 400 for flatbed trucks (F450, F550)
$18,300.00 – $20,950.00
Complete with wildland products pro 250 pump and scotty foam eductor

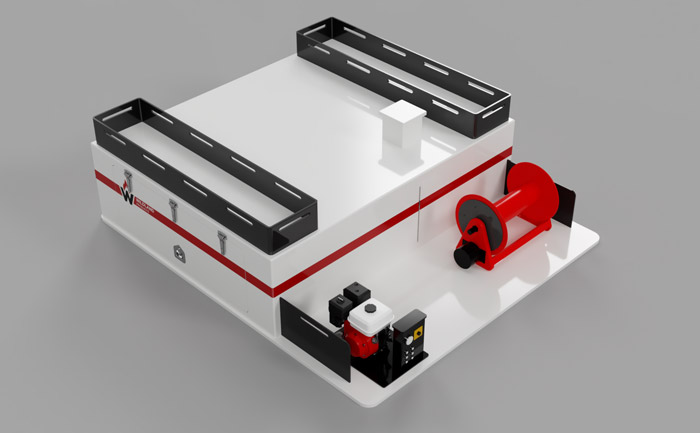

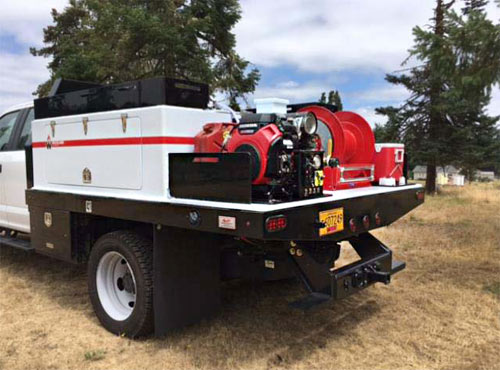

Easy to mount system with everything needed to transform your existing Class 4 or 5 Medium truck equipped with a flatbed, into a high-performance type 5 or type 6 Fire Engine. Features an Integrated design: water tank, compartments, and pump platform are all in one piece. Removable high-pressure fire-fighting pump and controls, class A foam system, and electric rewind hose reel.
Complies with NFPA 1906 requirements for slip-on fire-fighting modules and NWCG specifications for Type 5, and 6 Wildland Fire Engine.
Available options include: Wildland Products pro 300 pump and Foamflo Foam Proportioner.
For shipping/delivery and payment options, contact us.
Please contact us before placing your order.
- Water Tank: 350 to 450 gallons (US) capacity. 100% polypropylene construction with double-sided extrusion welds throughout. Structural baffling system, internal 2” low level suction strainer, and removable lid with welded fill tower with integrated strainer. Water level sight-glass built into rear wall of tank (Figure 1). 1.5” expansion drain plug.
- Compartments: Two 21.5 cubic foot compartments, with one polypropylene door each. Stainless steel 3 point, keyed, T-handle latch system, stainless-steel heavy-duty hinges, and 2 gas struts per door.
- Cargo Racks: Two 8 square foot over compartment areas. Other configurations available upon request.

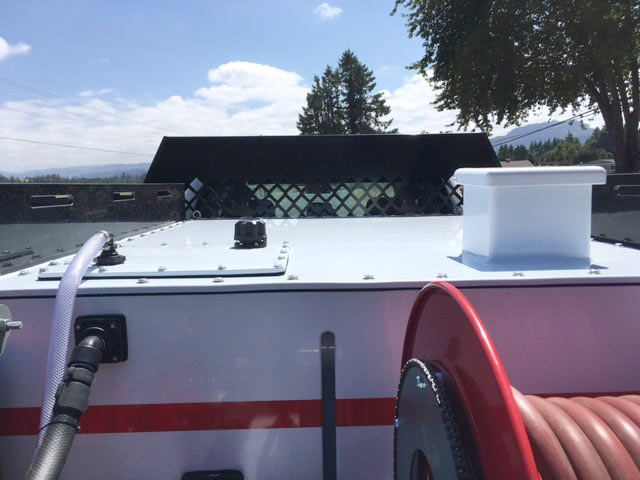

- Foam Cell: Bolt-on design, 10 gallons (US), with internal ¾” foot valve/low level strainer and integral filler strainer vent cap (Figure 1, 2).
- Anchoring System: The integrated slip-on module attaches directly to the existing flatbed using 12-1/2” and 8-3/8” stainless steel bolts. Four 3/8” stainless steel lifting eyes are located on each corner of the tank to aid with installation.
- Weight: 600 pounds, not including pump or hose reel.
- Pump: WILDLAND PRODUCTS PRO 250 PUMP. Speed increaser style, single-stage centrifugal pump. 250 PSI max/110 GPM. 2” suction and 1.5” discharge ports. Features aluminum alloy construction, bronze impeller, and carbon ceramic seals. Powered by a 14 HP high torque electric start Kohler Gasoline engine equipped with 4 stage air filtration system, integral 1.77 Gallon fuel tank, and backup recoil start (Figure 4). (WILDLAND PRODUCTS PRO 300 PUMP as optional upgrade.)

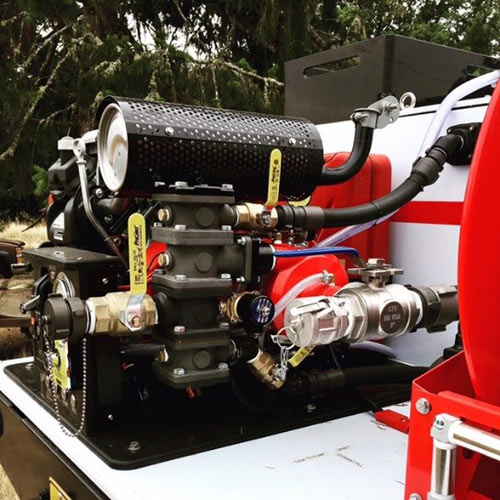

- Discharge Manifold: Lightweight, modular, hard-anodized aluminum manifold with brass ball valves. Comes standard with 1.5” NH discharge, 1” return/tank fill line, and 1” hose reel valve (Figure 5). Other configurations available upon request.
- Suction: 3-way T port stainless steel 2” valve (Figure 5).
- Primer: Electric one-button system. Features an electric solenoid valve in conjunction with a Pentair electric diaphragm 3 GPM pump.
- Foam Proportioner: Scotty 4171 around the pump class A foam proportioner. Concentration range 0.15% to 3%. (Trident FOAMATE optional upgrade.)

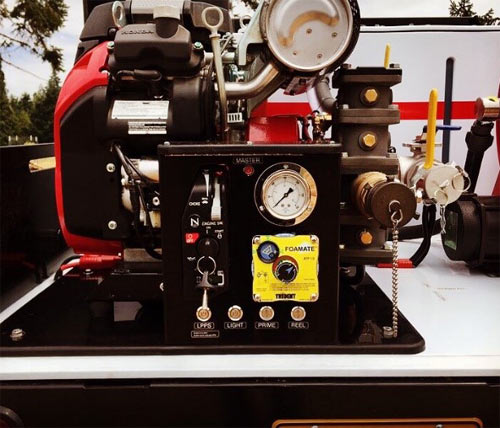

- Control Panel: Compact design, fabricated in polypropylene and attached to the pump module mounting pad. Contains the following: fluid filled pressure gauge, throttle control, choke, low pressure protection system, primer, lights, hose reel rewind, and foam proportioner (Figure 6). Control panel design may vary.
- Pump Module Mounting Pad: Removable, fabricated polypropylene. All pump system components are attached to this structure; bolts onto the slip-on pump platform using eight 3/8” stainless steel bolts.
- Couplings: Hard anodized aluminum expanded ring rocker lug fire grade couplings used throughout (Figure 5).
- Hose Reel: REELCRAFT series 30000 with 175 feet of 3/4” semi-rigid hose. Electric rewind and roller guide standard. (1” hose reel also available.)
- Electrical Connections: 4 AWG with 50-amp circuit breaker from battery box to pump module. 10 AWG from pump module to hose reel. Quick connectors in both circuits for quick removal of pump module (Figure 6).
